Product Details
Main Technical Data:
| MODE | VOLTAGE | NO-LOAD | LOAD | MAXIMUM | OUTPUT | EFF | STALL | ||||||||||||||||||||
|
voltage range |
test voltage |
SPEED | CURRENT | SPEED | CURRENT | TOTPUT | A | mN/m | |||||||||||||||||||
| RPM | A | RPM | A | mN/m | W | % | |||||||||||||||||||||
| YDL3060 | 9.0-24.0 | 12.0 | 5000 | 0.37 | 4300 | 1.80 | 33.9 | 15.3 | 70 | 10.0 | 225.0 | ||||||||||||||||
| YDL3060 | 12-24.0 | 24.0 | 10300 | 0.41 | 10000 | 2.50 | 47.06 | 44.5 | 75 | 16.0 | 342.0 | ||||||||||||||||
| YDL3230 | 9.0-30.0 | 24.0 | 6000 | 0.72 | 4900 | 0.38 | 8.90 | 4.50 | 68 | 1.48 | 49.0 | ||||||||||||||||
| YDL3230 | 9.0-30.0 | 12.0 | 4000 | 0.70 | 3100 | 0.36 | 8.82 | 2.82 | 65 | 1.40 | 41.0 | ||||||||||||||||
| YDL3230 | 6.0-32.0 | 24.0 | 4000 | 0.08 | 3100 | 0.16 | 6.02 | 2.20 | 60 | 0.76 | 28.5 | ||||||||||||||||
| YDL3230 | 7.0-36.0 | 12.0 | 10500 | 0.18 | 9200 | 1.05 | 9.62 | 9.20 | 75 | 8.20 | 90.0 | ||||||||||||||||
| YDL3640 | 9.0-30.0 | 12.0 | 8000 | 0.42 | 6600 | 2.05 | 20.78 | 14.5 | 62 | 9.70 | 127.0 | ||||||||||||||||
| YDL3640 | 9.0-36.0 | 24.0 | 9000 | 0.16 | 7750 | 1.01 | 21.76 | 17.7 | 76 | 5.90 | 146.8 | ||||||||||||||||

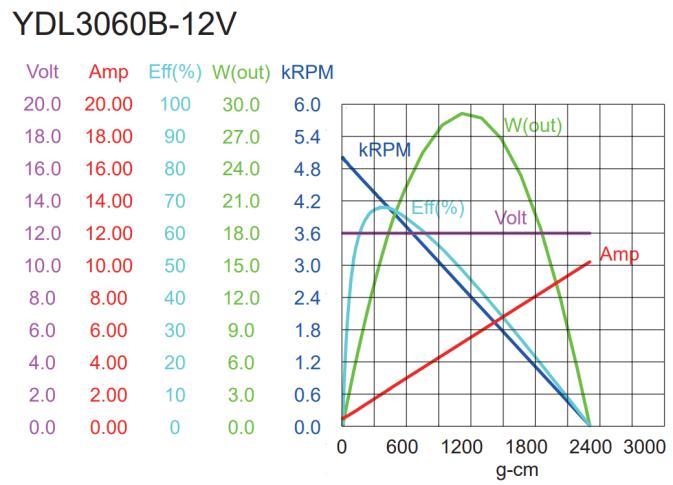

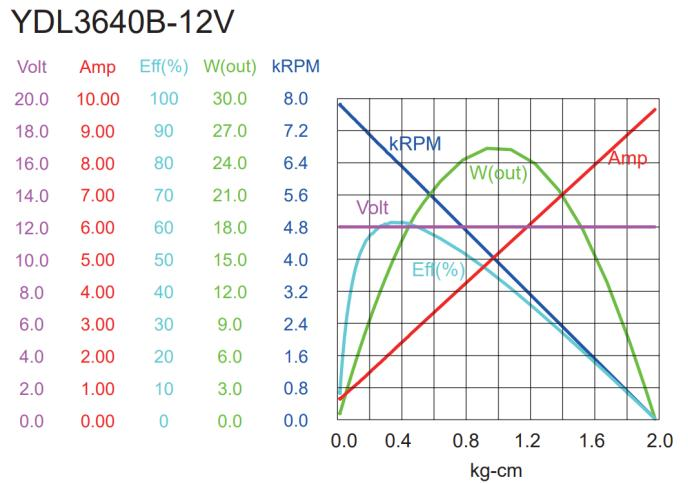

Performance curve：
Application scenarios：
RobotVacuum、VendingMachine、Ventilator、OpticalCleaningMachine、FluidPump、Gearbox、WaterPump、Pump、ElectricCurtain
