Product Details
| MODE | VOLTAGE | NO-LOAD | LOAD | MAXIMUM | OUTPUT | EFF | STALL | |||||
|
voltage range |
test voltage |
SPEED | CURRENT | SPEED | CURRENT | TOTPUT | A | mN/m | ||||
| RPM | A | RPM | A | G/CM | mN/m | W | % | |||||
| YDL2530 | 6.0-16.0 | 9.0 | 6200 | 0.12 | 5000 | 0.49 | 53.0 | 5.26 | 2.8 | 65 | 2.3 | 3.0 |
| YDL2540 | 6.0-36.0 | 32.0 | 13600 | 0.11 | 11000 | 0.60 | 123 | 12.1 | 14.0 | 73 | 3.0 | 70 |

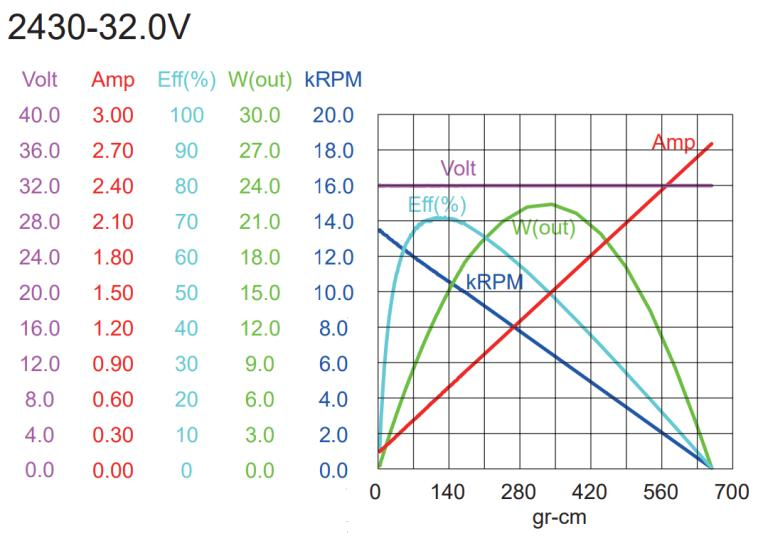

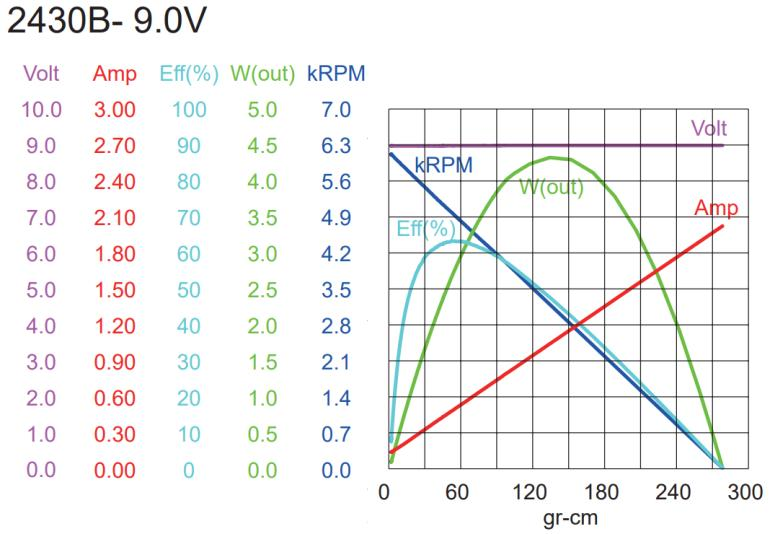

Performance curve：
Application scenarios：
Portable Power Tool、Smart Home、Robot Vacuum、5G Antenna
