Product Details
Main Technical Data:
| Product | Watts |
Maxvo Itage |
MaxA mps |
Rotor Poles |
10 | Resistance | Ku (RPM/Volt) |
Max RPM |
Length | Dlameters | Welght (g) |
Shaft (mm) |
Length ofextend shaft |
Conn ector |
| 2430/3.5Y | 200 | 7.2V | 28A | 4 | 3.6A | 0.0038 | 8200 |
60000 |
30mm | 24mm | 58 | φ2.0 | 12mm | 3.5mm |
| 2430/4Y | 8.4V | 24A | 2.3A | 0.0068 | 7200 | |||||||||
| 2430/5Y | 10.8V | 18A | 1.9A | 0.0127 | 5800 | |||||||||
| 2435/3.5Y | 300 | 9.6V | 32A | 2.5A | 0.0032 | 6100 | 35mm | 63 | ||||||
| 2435/4Y | 12.6V | 24A | 2.0A | 0.0057 | 4800 | |||||||||
| 2435/4.5Y | 13.2V | 22A | 1.7A | 0.0122 | 4500 | |||||||||
| 2440/2.5Y | 400 | 8.4V | 47A | 3.2A | 0.0032 | 6100 | 50000 |
40mm | 68 | φ2.3 | ||||
| 2440/3Y | 10.6V | 34A | 2.2A | 0.0057 | 4800 | |||||||||
| 2440/3.5Y | 12.6V | 32A | 1.2A | 0.0122 | 4000 | |||||||||
| 2445/2Y | 500 | 8.4V | 59A | 3.0A | 0.0042 | 5400 | 45mm | 72 | ||||||
| 2445/3Y | 13.2V | 38A | 2.4A | 0.0065 | 3600 | |||||||||
| 2445/4Y | 14.8V | 32A | 1.8A | 0.0117 | 3000 |

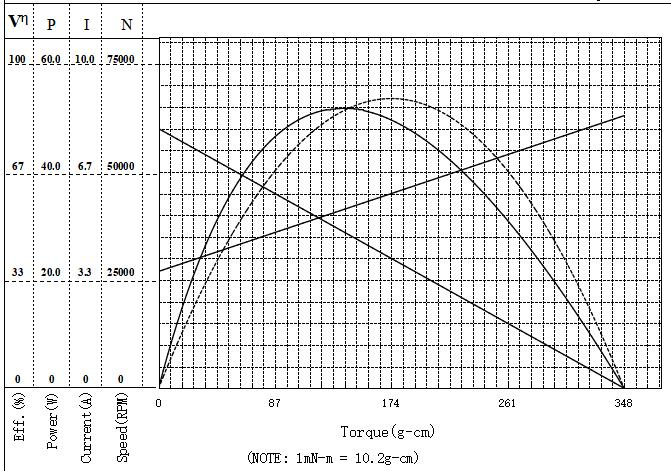

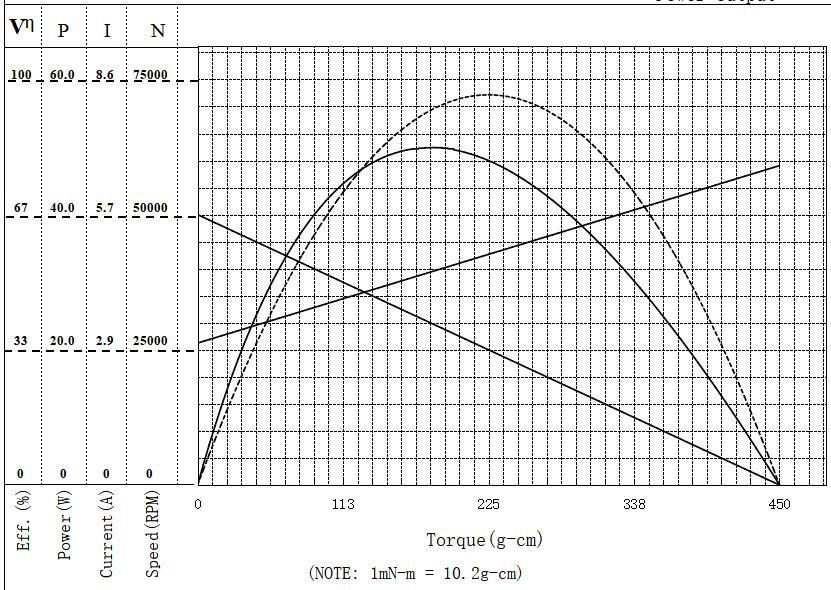

Performance Curve:
2430/Y 7.2V
2445/4Y 14.8V
Application scenarios：
Drones, robotic vacuum cleaners, vending machines
